• SK75UR 2425U261F1 Small Slewing Ring for kobelco Swing Bearing Excavator
SK75UR 2425U261F1 Small Slewing Ring for kobelco Swing Bearing Excavator

SK75UR 2425U261F1 Small Slewing Ring for kobelco Swing Bearing Excavator

Product Details:

Place of Origin: China
Brand Name: Excavator Slewing Ring
Model Number: SK75UR

Payment & Shipping Terms:

Minimum Order Quantity: 1 PCS
Price: Negotiatied price
Packaging Details: Standard shipping package
Delivery Time: Within 2 working days
Payment Terms: T/T,paypal,trade assurance
Supply Ability: 1000 PCS/month
Get Best Price Contact Now

Detail Information
Model: SK75UR Part Number: 2425U261F1
Part Name: Slewing Bearing Application: Excavator Parts
Brand: Zw Quality: New

Product Description

SK75UR 2425U261F1 Small Slewing Ring for kobelco Swing Bearing Excavator







Appliion
Crawler excavator
Part name
Slew ring bearing
Model
SK75UR
Part number
2425U261F1
Warranty
Negotiable
Payment term
T/T, paypal, trade assurance or as required
After sales service
Online





Pos. Part No Qty Parts name Comments
. . LP40F00001F1 [1] RING KOB Slewing Ring Assembly, Used in production, For Service Only 24100N7529F1 Superseded by part number: LP40F00001F4
1. 24100N7529F1 [1] RING KOB Slewing Assembly, Incls. Refs. 1-1 - 1-9, Service Replacement
1-1. 2425N373F1 [1] RACE KOB Outer
1-1A. NA [1] NOT SERVICED FOR Race, Outer
1-1B. 2420T4543D2 [1] PLUG KOB
1-1C. 2419T1964D7 [1] PIN,10mm OD x 56mm L KOB Taper -- OD 10 x 56mm Long
1-2. 2401N443 [1] RACE KOB Inner
1-3. 2425T321 [108] BALL KOB Ø25.4mm (1 in) Steel
1-4. 2425T322 [108] RETAINER KOB
1-5. 2445P165D6 [1] SEAL KOB Superseded by part number: YN40F01024D4
1-6. 2445P165D5 [1] SEAL KOB Superseded by part number: YN40F01024D4
1-7. 2432T1265 [1] LABEL KOB Name Plate Superseded by part number: YN22T00191P1
1-8. 4020Z64 [2] RIVET KOB OD 5.0 x 6.0mm Long Superseded by part number: 2420P623D7
1-9. ZG91S02000 [1] LUBE NIPPLE,1/8" NPT x 1/8" NPT KOB 1/8" PT -- Straight
1-10. 2414Z307 [1] CAP KOB
3. ZS13C16045 [36] SCREW KOB Screw -- M16x2.0x45mm
. . 2445P114D7 [1] SEAL KIT KOB Kit -- Contains Items 1-5 & 1-6 Superseded by part number: YN40F01024D4
. . LP40F00001F2 [1] Slewing Ring Assembly, Used in production, For Service Only 24100N7529F1
2. YW40F00001F1 [1] SLEWING RING KOB Superseded by part number: 24100N7529F1
2-1. NSS [1] NOT SOLD SEPARAT CON
2-2. NSS [1] NOT SOLD SEPARAT CON
2-3. 2425T321 [108] BALL KOB Ø25.4mm (1 in) Steel
2-4. 2425U238S4 [108] CAP
2-5. NSS [1] NOT SOLD SEPARAT CON
2-6. 2425U238S6 [1] PIN KOB TAPER
2-7. YW40F00001S007 [1] SEAL KOB
2-8. 2425U238S8 [1] SEAL KOB
2-9. ZG91S02000 [1] LUBE NIPPLE,1/8" NPT x 1/8" NPT KOB 1/8" PT -- Straight





Our main products are Excavator Hydraulic spare parts, Hydraulic main pump, Swing Motor, Travel Motor, Final Drive Ass'y, Swing Device Ass'y, Swing Gearbox, Travel Gearbox, Gears, Regulators, Relief Valve, Fan motor and other hydraulic items with genuine and aftermarket quality.



Until now, our products enjoy a high reputation and have been exported to more than 125 countries and regions, spreading all over the Middle East, Southeast Asia, Africa, North America, South America, Europe and Oceania with its own brand "Belparts" which are widely acclaimed by foreign customers.

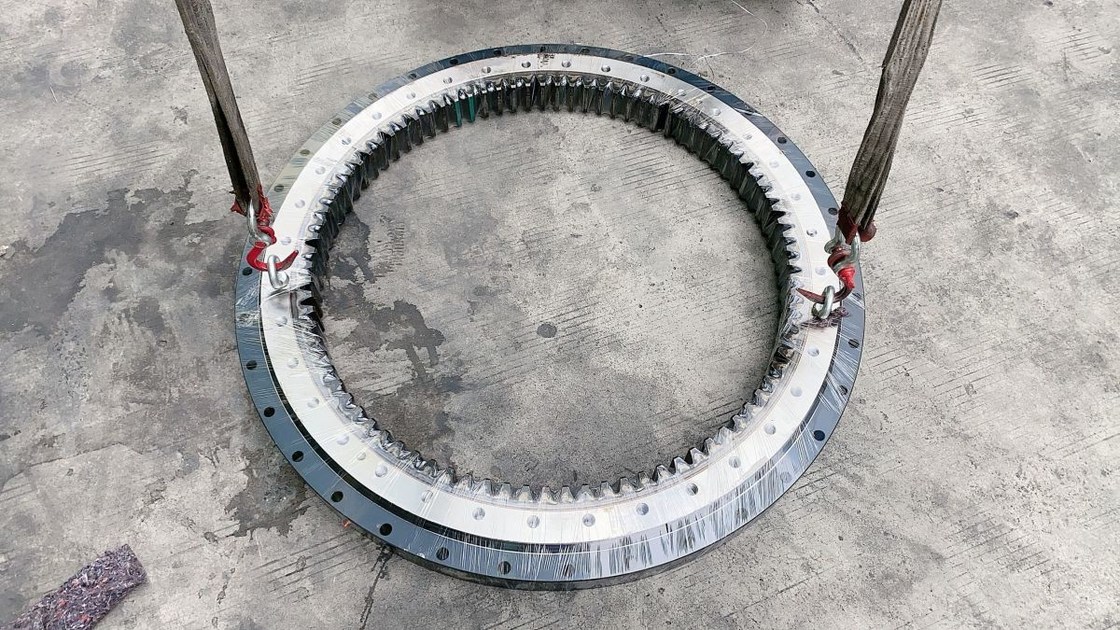

SK75UR 2425U261F1 Small Slewing Ring for kobelco Swing Bearing Excavator 0



SK75UR 2425U261F1 Small Slewing Ring for kobelco Swing Bearing Excavator 1



SK75UR 2425U261F1 Small Slewing Ring for kobelco Swing Bearing Excavator 2


SK75UR 2425U261F1 Small Slewing Ring for kobelco Swing Bearing Excavator 3
